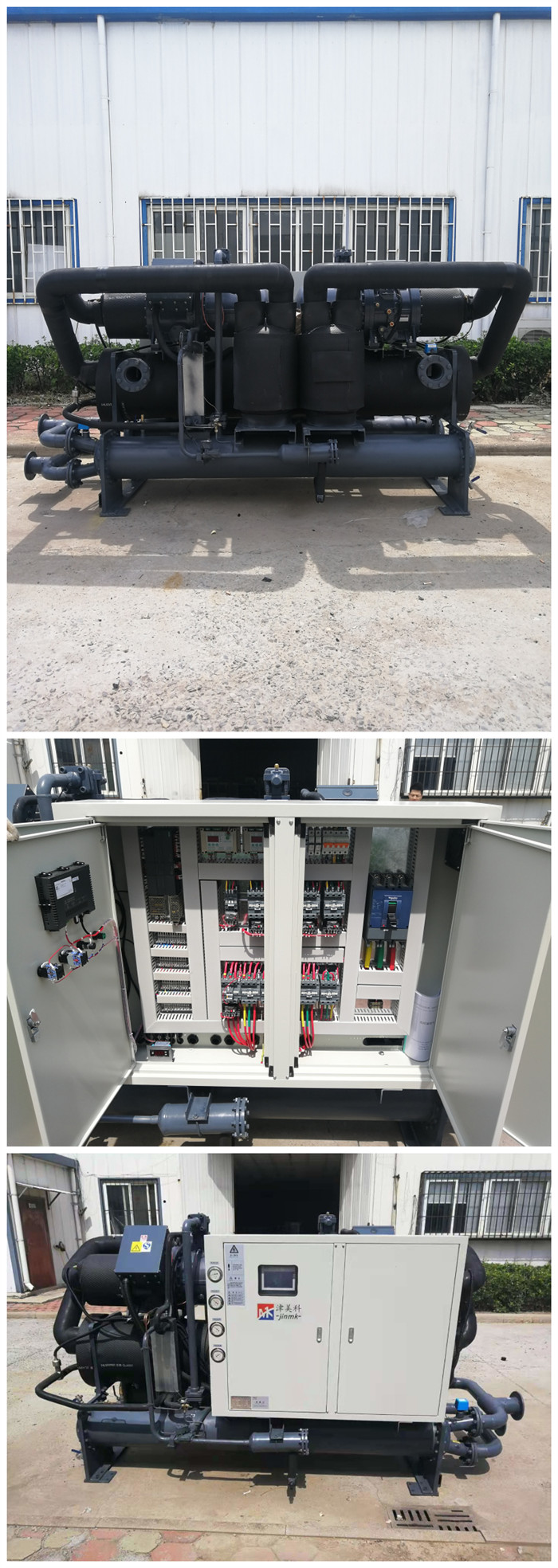

水冷式螺杆冷水机组（Water-cooled Screw chiller）

Special Features/功能特点

u  MK系列水冷式螺杆冷水机组的心脏-进口优质螺杆压缩机，其高效双螺旋转子性能出众，比一般压缩机效能高20%-30%,运行可靠、效率高、维护容易，精确的能量控制，应用范围广。1、优质非对称转子齿形双螺杆；2、四段或无段式容量调节；3、内建压差式供油滑润系统；4、低震动、低噪音。

u  机组采用可编程微电脑控制器，准确控制进出水温度，采用超大液晶显示触摸屏，具有良好的全中文人机对话界面，能全面实现机组自动化控制，液晶显示屏即时显示机组工作状况，实时监控机组运行状态。

u  分级与无极能量控制，用于一般的工艺制冷或空调系统，装备有100%、75%、50%、25%分级能量控制系统，能确保机组在部分负荷时平稳运行，如需更精确控制水温，可按用户要求装配无极能量控制系统，实时控制冷量输出，达到高效节能运行，精确控制水温的目的。

u  机组换热器采用优质高效内螺纹换热紫铜管，与被冷却介质充分换热，换热效率高，确保机组高效运行；机组具有可靠的安全保护和辅助部件，实时监控机组运行状态，具体保护措施有：压缩机保护计时器，过电流继电器、压缩机电机温感器、视野镜、油加热器、压缩机逆向保护继电器，排气高温保护，安全阀，易溶塞等。

      The heart of MK series water-cooled screw chillers is an imported high-quality screw compressor with outstanding performance of high-efficiency double screw rotors, which is 20% - 30% more efficient than ordinary compressors. It is reliable in operation, high in efficiency, easy to maintain, precise in energy control, and has a wide range of applications. 1. High quality asymmetric rotor tooth shaped twin screw; 2. Four stage or non stage capacity regulation; 3. Built-in differential pressure oil supply and lubrication system; 4. Low vibration, low noise.

    The unit adopts a programmable microcomputer controller to accurately control the inlet and outlet water temperature. It adopts a large LCD touch screen with a good human-computer dialogue interface in Chinese, which can fully realize automatic control of the unit. The LCD screen instantly displays the unit's working status and real-time monitors the unit's operating status.

    Graded and stepless energy control, used in general process refrigeration or air conditioning systems, is equipped with 100%, 75%, 50%, and 25% graded energy control systems, which can ensure stable operation of the unit under partial load. If more accurate control of water temperature is required, a stepless energy control system can be installed according to user requirements to control the cooling output in real time, achieving efficient and energy-saving operation, and accurately controlling the water temperature.

   The heat exchanger of the unit adopts high-quality and efficient internal thread heat exchange copper tubes, which fully exchanges heat with the cooled medium, ensuring high heat exchange efficiency and efficient operation of the unit; The unit is equipped with reliable safety protection and auxiliary components to monitor the operation status of the unit in real time. Specific protection measures include: compressor protection timer, overcurrent relay, compressor motor temperature sensor, field of view mirror, oil heater, compressor reverse protection relay, exhaust high temperature protection, safety valve, soluble plug, etc.
